Audley S7070-3 DTF PrinterShaker combo

Take your textile printing to the next level with the AUDLEY 2-Head DTF Printer, equipped with cutting-edge Epson I3200-A1 print heads. Engineered for precision, speed, and long-lasting performance, this printer delivers vibrant, professional-grade results ideal for businesses looking to expand their custom apparel or fabric printing capabilities.

Printer Overview: Model S7070-3

The AUDLEY 2-Head DTF Printer (Model S7070-3) integrates advanced technology and user-focused features to ensure seamless operation and high-quality outputs.

Key Features:

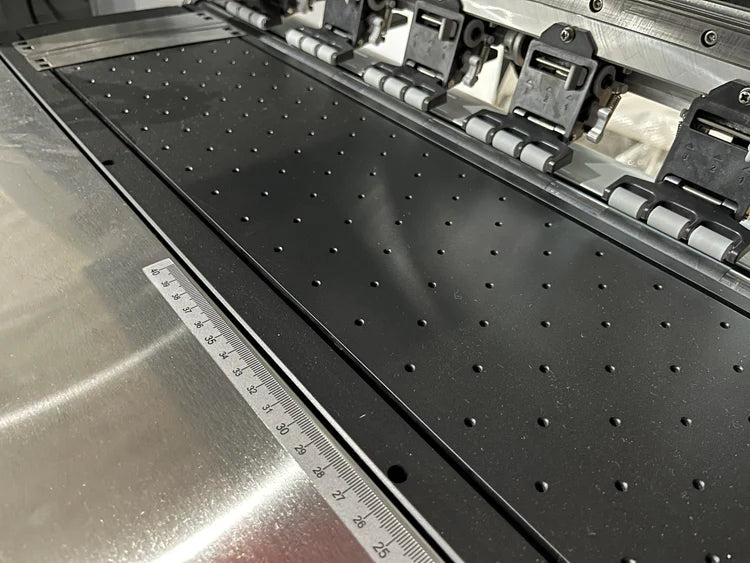

• Precision Material Pinch Roller: Guarantees accurate media handling, minimizing distortions and ensuring flawless prints.

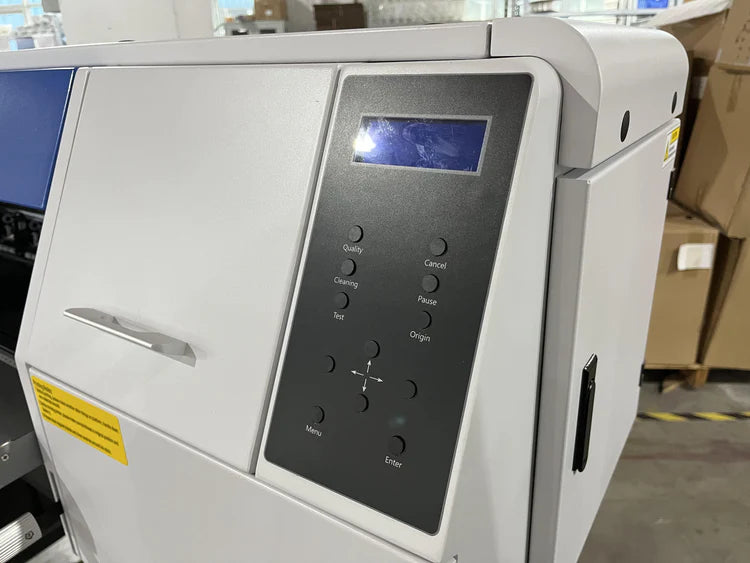

• Touch Screen Control System: Simplifies operation with an intuitive, easy-to-use interface, ideal for both experienced and new users.
• High Sensitivity Temperature Sensor: Maintains optimal printing conditions, safeguarding the print quality and extending print head lifespan.
• High-Precision Mechanical Ink Station: Ensures smooth and consistent ink flow, reducing maintenance needs and preventing clogs.
• Leadshine Servo Motor: Enhances print precision with controlled, smooth movements for superior output.

Technical Specifications:

• Print Heads: 2 Epson I3200-A1 for high-resolution printing
• Board Type: Hoson board for seamless operation
• Speed Options:
• 4-pass mode: 14 sqm/h for fast production
• 6-pass mode: 8 sqm/h for balanced speed and quality
• 8-pass mode: 6 sqm/h for highest quality output
• Ink Type: Pigment ink (CMYK + White) for rich, vivid color prints
• Working Size: Accommodates media up to 24in (60cm) wide
• Power Requirements: 220V 50HZ/60HZ (standard)
• Working Environment: Optimal at temperatures between 59°F - 86°F (15°C-30°C)
• Power Consumption: 1400W
• Packing Size (Printer): 78 × 30 × 28in (198 x 76 x 71cm)
• Printer Weight: 518lb (235kg)

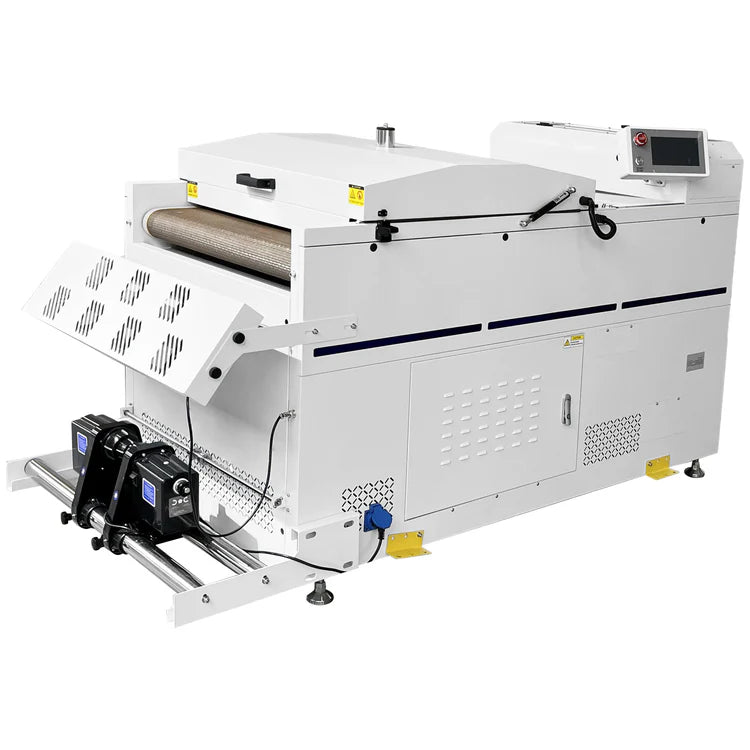

Powder Shaker Overview: Model DF-800(A)

Enhance the efficiency of your DTF printing process with the AUDLEY DF-800(A) Powder Shaker. This model ensures even powder application and precise curing for consistent, high-quality prints.

Key Features:

• Automatic Powder Feeding System: Streamlines workflow by automatically feeding and recycling excess powder, reducing waste and manual effort.
• Heating Tubes: Equipped with five 805mm heating tubes (800W each), providing consistent heat for optimal powder adhesion and curing.
• Compact Conveyor Belt System: Includes an air suction device to maintain smooth film transport, ensuring even coverage and print quality.

Technical Specifications:

• Working Width: Up to 24in (60cm), perfectly aligned with the printer's capabilities
• Power Consumption: 4500W to handle intensive workloads
• Packing Size (Shaker): 71 × 46 × 51in (180 x 115 x 128cm)
• Shaker Weight: 807lb (366kg)

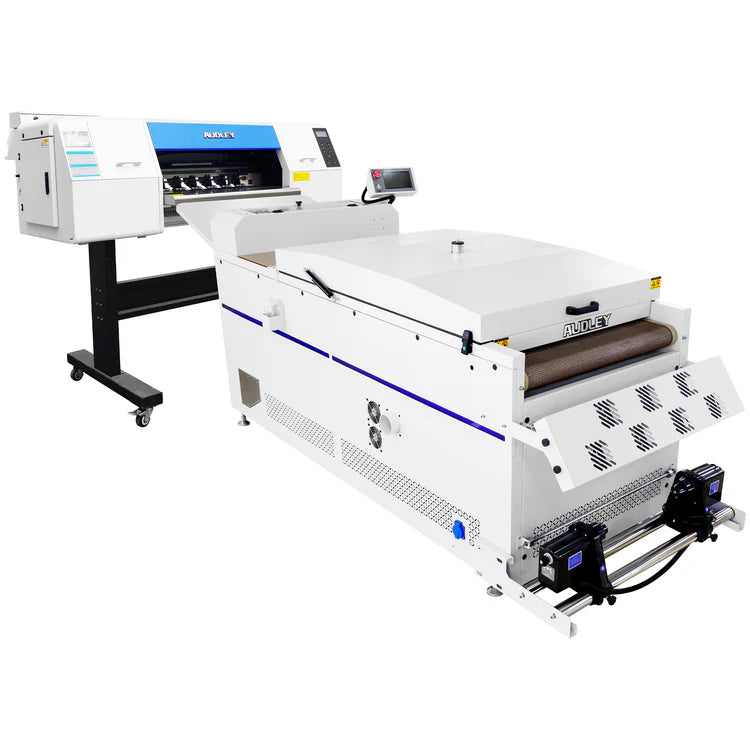

Why Choose the AUDLEY 2-Head DTF Printing System?

Combining the S7070-3 printer with the DF-800(A) powder shaker creates a powerful, efficient, and reliable DTF printing setup. This system is designed to deliver high productivity with minimal maintenance, making it the perfect solution for businesses aiming for superior print results with maximum output.

With features that support ease of use, high-speed operation, and consistent results, the AUDLEY 2-Head DTF Printer with Epson I3200-A1 print heads and the DF-800(A) Powder Shaker is an investment in top-tier textile printing technology.
